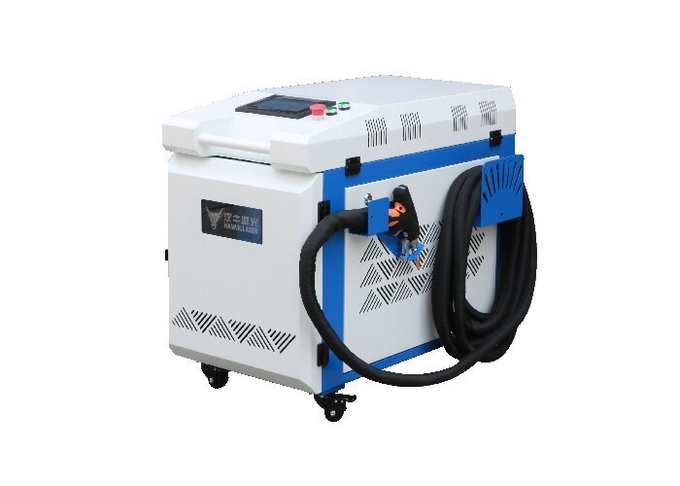

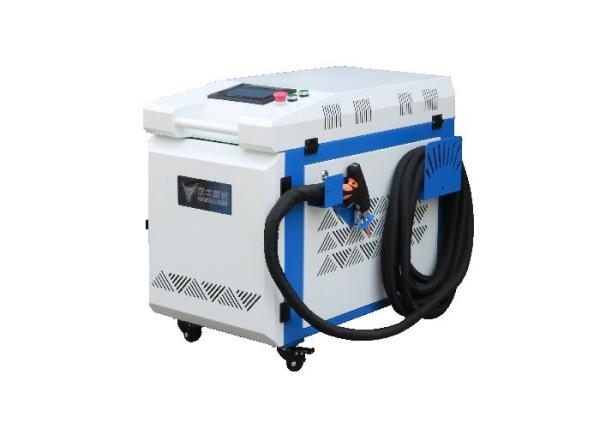

Metal SUS304 1500w 2000w 3000w Handheld Four In One
Fiber Laser Welding Machine
Specification form of this laser welding machine
| Model | TFZ-S-1500W |
| Laser power | 1500w/2000w/3000w |
| Cooling method | Water cooling |
| Laser wavelength | 1070nm |
| Welding depth | SS/CS≤3.5mm, Al≤2mm |
| Pulse width | Continuous light |
| Welding depth | ≤1.2mm |
| Repeat precision | ±0.01mm |
| Power consumption | ≤7KW |
| Power supply | 380v±10%/50Hz/30A |
| Length of fiber optical | 8m |
| Interface of fiber optical | QBH |
| Module life | >1000000hrs |
| Size | 1450*680*1470mm |
| Net weight | 155KG |
Main feature
1. This machine uses 500-1500 watt laser, high electro-optical
conversion efficiency, long laser life.
2. Maintenance-free,no adjustment, low energy comsuption, no
consumable, long-term use can save users alot of processing costs.
3. Volume: compact size,compact structure, built-in water cooling,
flexible hand-held welding, outdoor welding.
4. With 10 meters of fiber,it can weld at any angle to complex
large irregular workpieces.
5. Better beam quality for fiber transmission, more uniform solder
joints and better penetration.
Detail pictures of laser welding machine
Single molding, not easy to deform, no need to polish, meet various
angles and positions of welding.
The laser welding depth is big, the welding is firm; It is not easy
to deform,
and solves the problems of penetration welding, welding quality and
so on.
Get rid of the traditional manual wire feeding is not convenient,
accuracy is poor,
wire feeding is not stable, the finished product is not considtent.
The advantage of wire feeding welding is to weld 0.8-1mm plates,
reducing the workpiece weight.
It is not easy to deform and needs no polishing.
It solves the problems of welding penetation and welding quality
caused by argon arc welding.
The welding speed is fast, 2-10 times faster than traditional
welding.
Sample of the laser welding machine
Company Strength
Exhibition
Packaging & Shipping
1.Standard plywood case, no need to steam, can export directly.
2. car-lift machine up and down loading. more safe for machine.
3.when importing, the plywood case is with fumigation-free, the
procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment.
FQA
1.Q: Are you a factory or trading company?
A:We are a professional manufacturer specializing in laser for
about 10 years with export license.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou,
close to Baiyun Airport.
3.Q: Can you do OEM?
A: Yes, we can do OEM products as you requested.
4.Q: Where will the machines be shipped from?
A: It will be shipped from Huangpu Port Guangzhou,China. And We
will find the shipping company which will offer best and most
economical freight for our customers. But If you have a preferred
carrier,that will be more helpful for us.
5.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality
control from the very beginning to the very end:
1)All raw material we used are environmental-friendly;
2)Skillful workers care every details in handling the producing and
packing processes;
3)Quality Control Department is specially responsible for quality
checking in each process.
6.Q:This is my first time to import, how can I trust your company
and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support
payment terms Like L/C,Escrow to ensure your money safety.And we
welcome you to visit our factory.
7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend
most suitable machine according to your specific requirements.
8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will
confirm product undamaged, otherwise, please contact us within 2
days. Because we've bought insurance for you, we or shipping
company will be responsible!
