Product Description:
The tube laser cutting machine is a laser cutting machine specially
designed for tube cutting. It can cut round tubes, square tubes,
oval tubes, rectangular tubes and irregular tubes.
It is equipped with a special cutting operating system, which is
simple to operate, high precision and professional. Strong,
suitable for professional profile cutting.
Features:
High cutting accuracy, fast cutting speed, excellent cutting
quality and strong stability
Technical Parameters:
| Mode | GTX-6012T-3000W |
| Laser wavelength | 1070nm |
| Rated output power | 3000W |
| Beam quality | ≤0.373mrad |
| Maximum pipe diameter | Round tube 240mm, square tube diagonal 240mm |
| Maximum rotate speed | 60r/min |
| Cutting control accuracy | ±0.3mm |
| Transmission guide rail | transmission control |
| Gear rack | transmission control |
| Electricity accessories | contractor switch |
| Pipe cutting chuck | 240 chuck |
| Effective cutting length | <6000mm |
| Loading characteristics | Semi automatic feeding |
| Table repeated positioning accuracy | ≤±0.05mm/m |
Applications:
It is widely used in the cutting of ferrous metal pipes such as
carbon steel, stainless steel and alloy steel.
Industry :Electrical appliances, aviation, aerospace, electronics,
machinery and other industries,Sheet metal processing
Industries such as oil pipelines, construction machinery, household
appliance manufacturing,
automobile manufacturing, medical equipment, hardware processing,
and fitness equipment

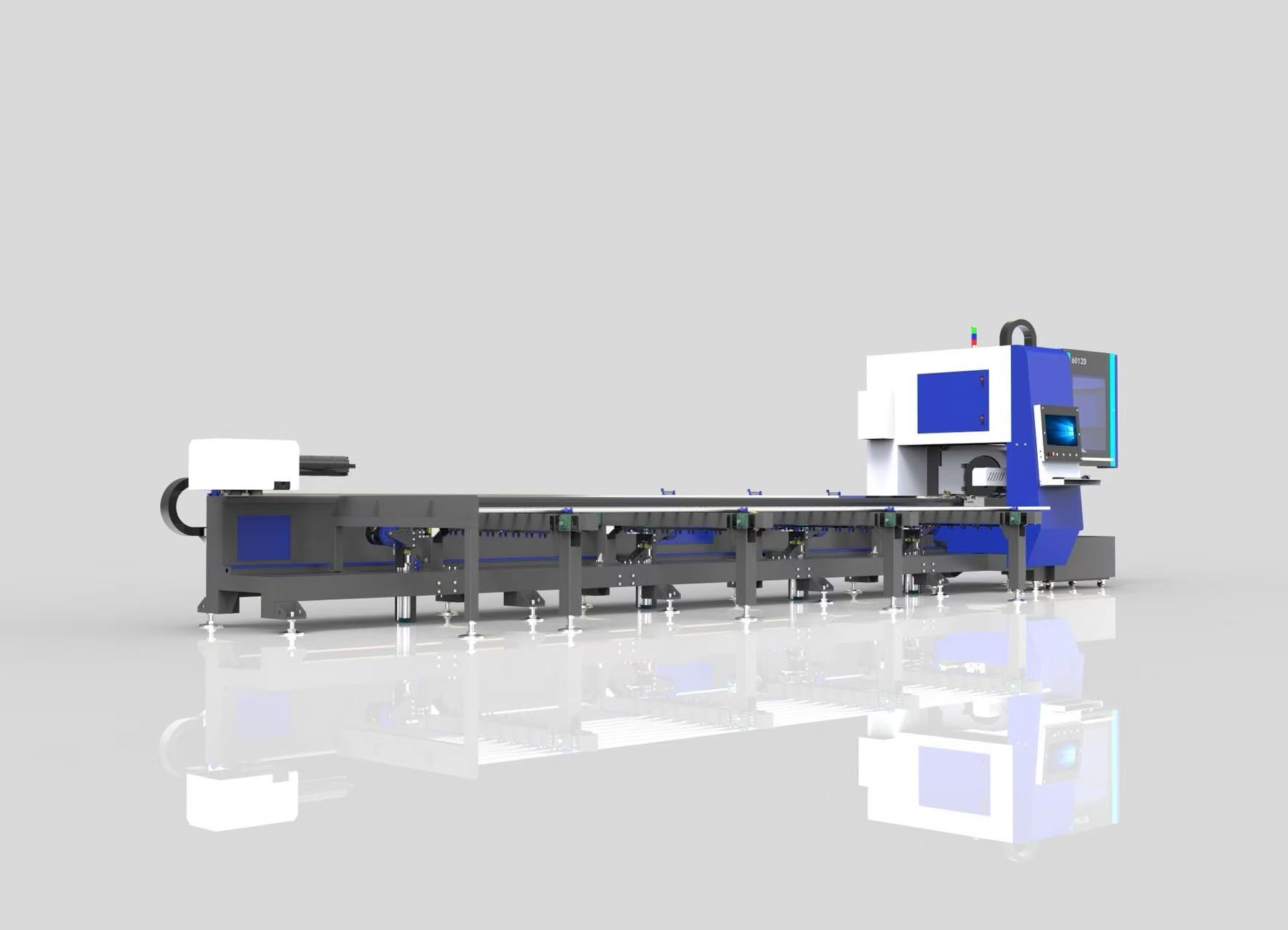

Machine picture:
Company strength:
Exhibitions:
Shipping&Packing:
1 Standard plywood case, no need to steam, can export directly.
2 car-lift machine up and down loading. more safe for machine.
3 when importing, the plywood case is with fumigation-free, the
procedure is simple.
4 Delivery Detail: within 3-5 days after received your payment.
FAQ:
1.Q: Are you a factory or trading company?
A:We are a professional manufacturer specializing in laser for
about 10 years with export license.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou,
close to Baiyun Airport.
3.Q: Can you do OEM?
A: Yes, we can do OEM products as you requested.
4.Q: Where will the machines be shipped from?
A: It will be shipped from Huangpu Port Guangzhou,China.
And We will find the shipping company which will offer best and
most economical freight for our customers.
But If you have a preferred carrier,that will be more helpful for
us.
5.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality
control from the very beginning to the very end:
1)All raw material we used are environmental-friendly;
2)Skillful workers care every details in handling the producing and
packing processes;
3)Quality Control Department is specially responsible for quality
checking in each process.
6.Q:This is my first time to import, how can I trust your company
and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support
payment terms Like L/C,Escrow to ensure your money safety.
And we welcome you to visit our factory.
7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend
most suitable machine according to your specific requirements.
8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will
confirm product undamaged, otherwise, please contact us within 2
days.
Because we've bought insurance for you, we or shipping company will
be responsible!
